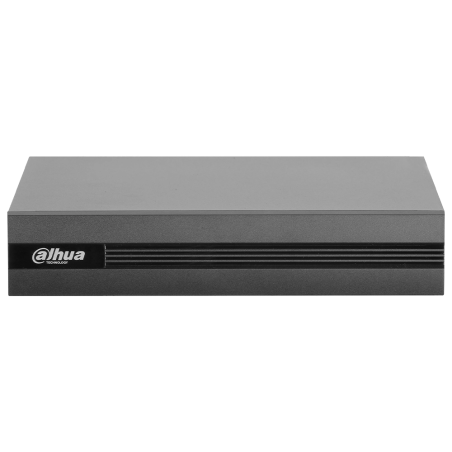

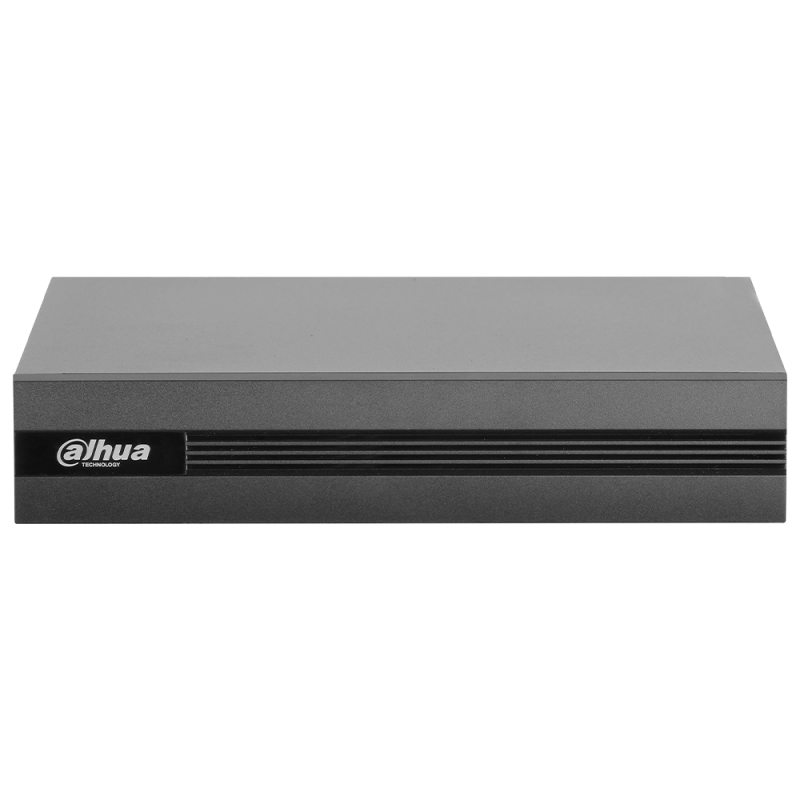

Dahua 16-Channel 5MP WizSense AI with Full-Channel SMD Plus Human and Vehicle Detection, AI Coding, Support up to 24 IP Cameras

Key Features

🤖 WizSense Artificial Intelligence

WizSense provides intelligent video analysis focused on humans and vehicles, helping improve alarm accuracy and simplify event searching.

🚶 Full-Channel SMD Plus

SMD Plus is supported on all 16 analog channels, helping filter false alarms caused by rain, leaves and lighting changes.

💾 Full-Channel AI Coding

AI Coding is supported on all 16 analog channels, helping retain important human and vehicle details while reducing storage and bandwidth consumption.

📷 Analog Camera Support up to 5MP

The recorder supports HDCVI cameras at resolutions up to 5MP, together with high-resolution TVI and AHD cameras.

🎥 Sixteen Analog Camera Inputs

It includes 16 BNC inputs with automatic detection of HDCVI, AHD, TVI and CVBS camera signals.

🌐 Support for up to 24 IP Cameras

Eight IP channels are available by default, and up to 24 IP cameras can be connected when analog channels are converted into IP channels. Each IP channel supports resolutions up to 6MP.

🔌 Penta-Brid Camera Compatibility

The recorder supports HDCVI, AHD, TVI, CVBS and IP cameras, making it suitable for new surveillance systems and existing system upgrades.

💽 Efficient Smart H.265+ Compression

AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 help reduce recording file sizes, storage use and network bandwidth.

🖥️ 4K HDMI Output

The HDMI output supports display resolutions up to 4K, while a VGA output is also available for Full HD monitors.

🔊 Audio over Coax

Compatible HDCVI cameras can transmit audio over the same coaxial cable on all 16 channels. RCA audio input and output are also available.

📱 Remote Mobile Viewing

Live video, recordings and notifications can be accessed remotely through the DMSS application on Android and iOS devices.

🔍 Intelligent Search and Playback

Smart playback functions help locate recordings involving humans and vehicles more efficiently.

💽 Hard Drive Support up to 16TB

The recorder supports one internal SATA hard drive with a capacity of up to 16TB.

🌐 Gigabit Network Port

A 10/100/1000Mbps RJ45 Ethernet port provides faster and more stable network connectivity.

Technical Specifications

Device Type: WizSense Digital Video Recorder XVR

Analog Channels: 16 channels

Analog Camera Inputs: 16 BNC ports

Supported Video Inputs: HDCVI / AHD / TVI / CVBS / IP

Artificial Intelligence Technology: WizSense

Recorder-Based SMD Plus: Supported on 16 analog channels

Camera-Based SMD: Supported on up to 24 compatible camera channels

Target Classification: Human and vehicle

AI Coding: Supported on 16 channels

Maximum HDCVI Camera Resolution: Up to 5MP

TVI Camera Support: Up to 5MP

AHD Camera Support: Up to 5MP

Default IP Camera Channels: 8 channels

Maximum IP Camera Channels: Up to 24 channels

Maximum IP Camera Resolution: Up to 6MP per channel

Incoming Bandwidth: Up to 128Mbps

Recording Bandwidth: Up to 128Mbps

Outgoing Bandwidth: Up to 128Mbps

Operating System: Embedded Linux

Processor: Industrial-grade embedded processor

Operating Interface: Web and local GUI

Video Compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264

Recording Resolutions: 5MP / 5M-N / 4M-N / 1080p / 1080N / 720p / 960H / D1 / CIF

5MP Recording Rate: Up to 6fps on 4 channels in 5MP mode

5M-N Recording Rate: Up to 12fps

4M-N and 1080p Recording Rate: Up to 15fps

1080N and 720p Recording Rate: Up to 25/30fps

Dual-Stream Recording: Supported

Video Bit Rate: 32Kbps to 6144Kbps

Display Outputs: HDMI and VGA

Maximum HDMI Resolution: 3840 × 2160 4K

Maximum VGA Resolution: 1920 × 1080

Multi-Screen Display without IP Extension: 1 / 4 / 8 / 9 / 16

Multi-Screen Display with IP Extension: 1 / 4 / 8 / 9 / 16 / 25

Third-Party Camera Support: ONVIF / Panasonic / Sony / Hanwha / Axis / Arecont

Audio Input: 1-channel RCA plus 16-channel BNC coaxial audio

Audio Output: 1-channel RCA

Audio over Coax: Supported on 16 channels

Two-Way Audio: Supported

Audio Compression: G.711A / G.711U / PCM

Recording Modes: Continuous / Scheduled / Alarm / Motion Detection

Simultaneous Playback: 1 / 4 / 9 / 16 channels

Playback Modes: Instant / General / Event / Tag / Smart Playback

Intelligent Alerts: SMD Plus human and vehicle detection

Standard Alerts: Motion Detection / Video Loss / Camera Tampering / Camera Offline

System Alerts: No Disk / Disk Error / Low Storage / Network Disconnection / IP or MAC Conflict

Storage Interface: 1 SATA port

Maximum Hard Drives: 1 internal hard drive

Maximum Hard Drive Capacity: Up to 16TB

Hard Drive Included: Not included unless specified in the sales package

Network Interface: RJ45 10/100/1000Mbps Ethernet port

ONVIF Support: Supported

Mobile Access: Android and iOS through the DMSS app

Cloud Connection: P2P

USB Ports: 2 rear USB 2.0 ports

Backup Methods: USB device or network

Power Supply: 12V DC / 2A

Power Consumption: Less than 12W without the hard drive

Operating Temperature: -10°C to +45°C

Storage Temperature: -20°C to +60°C

Operating Humidity: 10% to 90%, non-condensing

Product Dimensions: Approximately 260 × 231.4 × 47.6mm

Net Weight: Approximately 0.93kg

Gross Weight: Approximately 1.43kg

Installation: Desktop

An intelligent surveillance recorder combining 5MP analog camera support, full-channel WizSense SMD Plus, AI Coding, 4K display output and support for up to 24 IP cameras.
