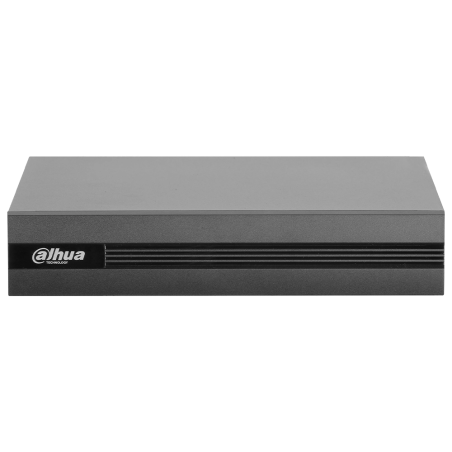

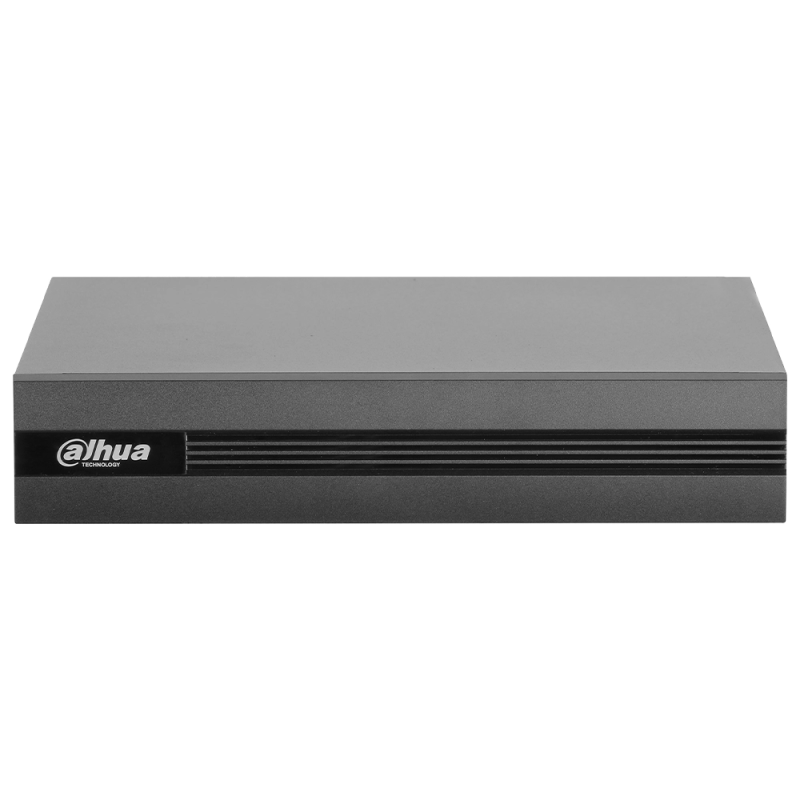

Dahua 8-Channel 5MP WizSense AI with Full-Channel SMD Plus Human and Vehicle Detection, AI Coding, Support up to 12 IP Cameras

Product Summary

Key Features

🤖 WizSense Artificial Intelligence

WizSense provides intelligent video analysis functions that improve surveillance accuracy and make important events easier to locate.

🚶 Full-Channel SMD Plus

SMD Plus is supported on all 8 analog channels, helping distinguish humans and vehicles from rain, leaves, lighting changes and other irrelevant movement.

💾 Full-Channel AI Coding

AI Coding is supported on all 8 analog channels, helping preserve important human and vehicle details while reducing storage and bandwidth consumption.

📷 Analog Camera Support up to 5MP

The recorder supports HDCVI, TVI and AHD camera inputs at resolutions up to 5MP, providing clear and detailed surveillance footage.

🎥 Eight Analog Camera Inputs

The recorder includes 8 BNC inputs with automatic detection of HDCVI, AHD, TVI and CVBS camera signals.

🌐 Support for up to 12 IP Cameras

Four IP channels are available by default, and up to 12 IP cameras can be connected when analog channels are converted into IP channels. Each IP channel supports resolutions up to 6MP.

🔌 Penta-Brid Camera Compatibility

It supports HDCVI, AHD, TVI, CVBS and IP video inputs, making it suitable for new surveillance installations and existing system upgrades.

💽 Efficient Smart H.265+ Compression

AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 help reduce recording file sizes, storage consumption and network bandwidth.

🔊 Audio over Coax

Compatible HDCVI cameras can transmit audio through the same coaxial cable on all 8 channels. RCA audio input and output are also available.

📱 Remote Mobile Viewing

Live video, recorded footage and notifications can be accessed remotely through the DMSS application on Android and iOS devices.

🖥️ HDMI and VGA Outputs

The recorder includes HDMI and VGA display outputs with resolutions up to Full HD 1080p.

🔍 Intelligent Search and Playback

SMD Plus makes it easier to locate recordings involving humans and vehicles.

💽 Internal Hard Drive Support

The recorder supports one internal SATA hard drive for surveillance video storage.

🚨 Multiple Intelligent Alerts

It supports human and vehicle alerts, motion detection, video loss, camera tampering, disk errors and network disconnection notifications.

🔗 P2P Cloud Connection

P2P connectivity makes it easier to connect the recorder to the internet and access it remotely without complicated network configuration.

Technical Specifications

Device Type: WizSense Digital Video Recorder XVR

Hardware Version: V2.0

Analog Channels: 8 channels

Analog Camera Inputs: 8 BNC ports

Supported Video Inputs: HDCVI / AHD / TVI / CVBS / IP

Artificial Intelligence Technology: WizSense

SMD Plus: Supported on 8 analog channels

Target Classification: Human and vehicle

AI Coding: Supported on 8 channels

Maximum HDCVI Camera Resolution: Up to 5MP

Maximum TVI Camera Resolution: Up to 5MP

Maximum AHD Camera Resolution: Up to 5MP

Default IP Camera Channels: 4 channels

Maximum IP Camera Channels: Up to 12 channels

Maximum IP Camera Resolution: Up to 6MP per channel

Incoming Bandwidth: Up to 64Mbps

Recording Bandwidth: Up to 64Mbps

Outgoing Bandwidth: Up to 64Mbps

Operating System: Embedded Linux

Processor: Industrial-grade embedded processor

Operating Interface: Web and local GUI

Video Compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264

Recording Resolutions: 5M-N / 4M-N / 1080p / 1080N / 720p / 960H / D1 / CIF

5M-N Recording Rate: 1fps to 10fps

4M-N and 1080p Recording Rate: 1fps to 15fps

1080N and 720p Recording Rate: Up to 25/30fps

960H, D1 and CIF Recording Rate: Up to 25/30fps

Dual-Stream Recording: Supported

Video Bit Rate: 32Kbps to 6144Kbps

Display Outputs: HDMI and VGA

Maximum Display Resolution: 1920 × 1080

Multi-Screen Display without IP Extension: 1 / 4 / 8 / 9

Multi-Screen Display with IP Extension: 1 / 4 / 8 / 9 / 16

Third-Party Camera Support: Supported through ONVIF

Audio Input: 1-channel RCA plus 8-channel BNC coaxial audio

Audio Output: 1-channel RCA

Audio over Coax: Supported on 8 channels

Two-Way Audio: Supported

Audio Compression: G.711A / G.711U / PCM

Recording Modes: Continuous / Scheduled / Motion Detection / Alarm / POS

Simultaneous Playback: 1 / 4 / 8 / 9 channels

Playback Modes: Instant / General / Event / Tag

Intelligent Alerts: SMD Plus human and vehicle detection

Standard Alerts: Motion Detection / Video Loss / Camera Tampering

System Alerts: No Disk / Disk Error / Low Storage / Network Disconnection / IP or MAC Conflict

Storage Interface: 1 SATA port

Maximum Hard Drives: 1 internal hard drive

Hard Drive Included: Not included unless specified in the sales package

Network Interface: 1 RJ45 10/100Mbps port

ONVIF Support: Supported

Mobile Access: Android and iOS through the DMSS app

Cloud Connection: P2P

USB Ports: 2 USB 2.0 ports

Backup Methods: USB device or network

Power Supply: 12V DC / 1.5A

Power Consumption: Less than 7W without the hard drive

Operating Temperature: -10°C to +45°C

Storage Temperature: -20°C to +60°C

Operating Humidity: 10% to 90%, non-condensing

Product Dimensions: Approximately 197 × 204.3 × 41.5mm

Net Weight: Approximately 0.59kg

Device Design: Cooper 1U

Installation: Desktop

An intelligent surveillance recorder combining 5MP analog camera support, full-channel WizSense SMD Plus, AI Coding and high-resolution IP camera compatibility.
