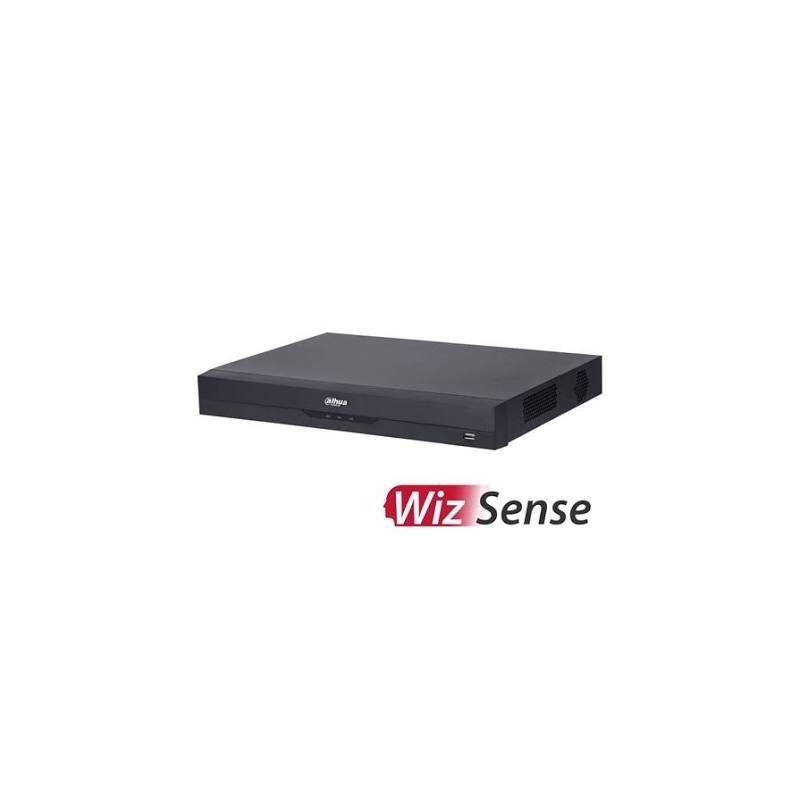

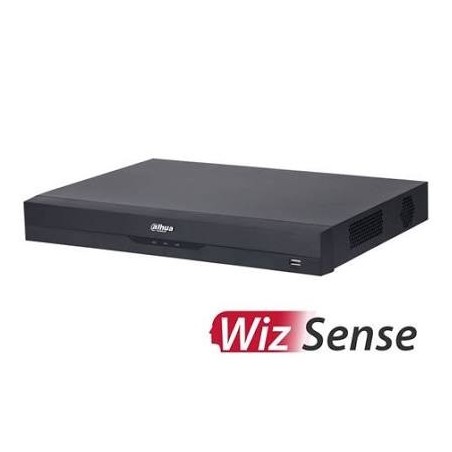

Dahua 32CH 5MP WizSense AI with Full-Channel SMD Plus, Human and Vehicle Detection, AI Coding, Support up to 48 IP Cameras

Key Features

🤖 WizSense Artificial Intelligence

WizSense provides intelligent video analysis functions designed to improve alarm accuracy and simplify event searching.

🚶 Full-Channel SMD Plus

SMD Plus is supported on all 32 analog channels, helping distinguish humans and vehicles from rain, leaves, lighting changes and other irrelevant movements.

💾 16-Channel AI Coding

AI Coding helps retain important details of humans and vehicles while reducing recording file sizes, storage use and network bandwidth.

🔍 QuickPick 2.0 Intelligent Search

QuickPick 2.0 improves target retrieval efficiency and helps users quickly locate people and vehicles within recorded footage.

🚧 Perimeter Protection

The recorder supports intelligent tripwire and intrusion detection functions with human and vehicle target classification.

👤 Face Detection and Recognition

Face detection and face comparison functions are supported on selected channels depending on the active AI operating mode.

📷 Analog Camera Support up to 5MP

The recorder supports HDCVI, TVI and AHD camera inputs at resolutions up to 5MP.

🎥 Thirty-Two Analog Camera Inputs

It includes 32 BNC inputs with automatic detection of HDCVI, AHD, TVI and CVBS camera signals.

🌐 Support for up to 48 IP Cameras

The recorder supports up to 48 IP camera channels when analog channels are converted into IP channels, with resolutions up to 8MP per channel.

🔌 Penta-Brid Camera Compatibility

It supports HDCVI, AHD, TVI, CVBS and IP video inputs, making it suitable for new surveillance systems and system upgrades.

💽 Efficient Smart H.265+ Compression

AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 help reduce storage consumption and network bandwidth.

🖥️ 4K HDMI Display Output

The HDMI output supports display resolutions up to 4K, while a VGA output is also available.

🔊 Audio over Coax

Compatible HDCVI cameras can transmit audio and two-way communication through the same coaxial cable.

📱 Remote Mobile Access

Live video, recordings and notifications can be accessed remotely through the DMSS application on Android and iOS devices.

💽 Two Internal Hard Drive Interfaces

Two SATA interfaces allow the installation of two internal surveillance hard drives.

🌐 Gigabit Network Connection

The Gigabit Ethernet interface provides reliable network performance for large camera systems and remote access.

Technical Specifications

Device Type: WizSense Digital Video Recorder XVR

Likely Model: XVR5232AN-I3

Device Design: 1U

Analog Channels: 32 channels

Analog Camera Inputs: 32 BNC ports

Supported Video Inputs: HDCVI / AHD / TVI / CVBS / IP

Artificial Intelligence Technology: WizSense

QuickPick 2.0: Supported on 2 analog channels

Recorder-Based SMD Plus: Supported on 32 analog channels

Camera-Based SMD: Supported on up to 48 compatible camera channels

Target Classification: Human and vehicle

AI Coding: Supported on 16 channels

Perimeter Protection: Supported on up to 8 analog channels

Perimeter Functions: Tripwire and Intrusion Detection

Face Detection: Supported

Face Comparison: Supported on selected channels depending on the AI mode

Maximum Analog Camera Resolution: Up to 5MP

Default IP Camera Channels: 16 channels

Maximum IP Camera Channels: Up to 48 channels

Maximum IP Camera Resolution: Up to 8MP per channel

Maximum Incoming Bandwidth: Up to 192Mbps

Operating System: Embedded Linux

Video Compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264

Recording Resolutions: 5MP / 5M-N / 4MP / 4M-N / 1080p / 1080N / 720p / 960H / D1 / CIF

Dual-Stream Recording: Supported

Display Outputs: HDMI and VGA

Maximum HDMI Resolution: Up to 4K

Maximum VGA Resolution: Up to 1920 × 1080

Audio over Coax: Supported on 32 channels

Audio Input: 1-channel RCA

Audio Output: 1-channel RCA

Two-Way Audio: Supported

Recording Modes: Continuous / Scheduled / Motion Detection / Alarm / Intelligent / Manual

Intelligent Search: QuickPick 2.0 / SMD Search / Face Search depending on operating mode

Storage Interfaces: 2 SATA ports

Maximum Hard Drives: 2 internal hard drives

Hard Drives Included: Not included unless specified in the sales package

Network Interface: RJ45 Gigabit Ethernet

ONVIF Support: Supported

Mobile Access: Android and iOS through the DMSS app

Cloud Connection: P2P

USB Ports: USB ports for mouse control and backup

Backup Methods: USB device or network

Power Supply: 12V DC

Installation: Desktop or suitable rack shelf

A professional surveillance recorder combining 32 analog camera inputs, 5MP camera support, WizSense AI, full-channel SMD Plus, AI Coding and support for up to 48 IP cameras.
